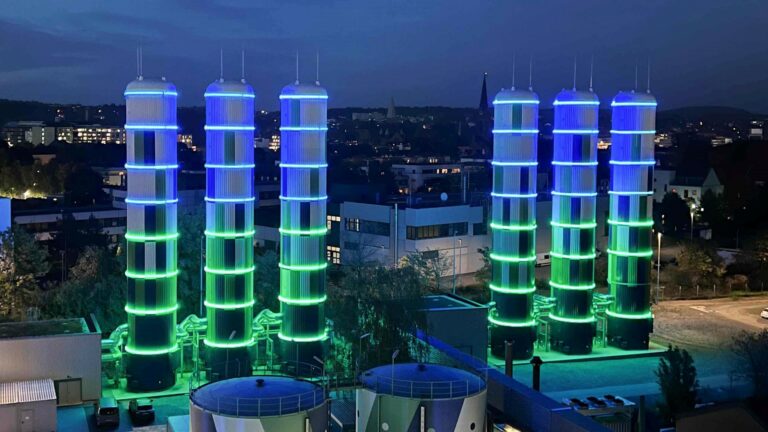

Three more heat storage tanks for SWK Stadtwerke Kaiserslautern
A total of six heat storage tanks play an important role in the energy transition Kremsmüller delivered three heat storage tanks, each 30 metres long, to Kaiserslautern back in 2017.
We're in big business
Appliances and vessels leaving our workshops often attract all eyes. They weigh tons and are many meters long, so they demand everything from our employees. Highly complex engineering services, top quality and technical perfection in production as well as solution-oriented thinking are among the skills and abilities that our employees in apparatus and tank construction use every day.
Apparatus and tank construction
High-pressure apparatuses of carbon steel alloy. Pressure vessels made of CrNi steels for corrosive processes. Welding constructions weighing tonnes for very high loads. All this with unexampled precision, made possible by one of the most modern machine parks in Europe. Spatially strictly separated, we work the very latest materials from plant construction. For CrNi and Nibas steels, one of the biggest pickling plants in Austria takes care of the perfect finish. The high quality is assured by our certifications and the in-house NDT department with state-of-the-art testing equipment.
Perfect support and complete solutions for your process. Our engineering seamlessly joins the basic engineering of the process provider and the customer. Consultancy, development, analytical and FE stress calculations, heat technology designs, detail engineering and welding technology are carried out directly by our technology sections.
- Heat-resistant carbon steels (16Mo3, 13CrMo4-5, 10CrMo910, A387Gr.22Cl2, P91, P92)
- Carbon steels that are tough at sub-zero temperatures (P355NL2, 12Ni19, 9%Ni)
- High-strength carbon steels (S690QL, S580M)
- Corrosion and heat-resistant CrNi-steel (1.4301, 1.4571, 1.4841)
- Special stainless steels (1.4462, 1.4510, 1.4529, 1.4539, 1.4466, 1.4876, 1.4313)
- Rolled and explosive plated steel, weld claddings (P355NL2 + 1.4462, A516 Gr.70 +AISI 316L)
- Nickel alloys (e.g. Alloy 59, Alloy 31, Inconel, Alloy C-276, Alloy 400)
- Titanium (Ti Gr.2, Ti Gr.12)
- HD reactors
- Gas tanks
- Separators
- Columns
- Acid gas apparatuses
- Heat exchangers
- Total covered shed area 10,000m, open area 10.000m²
- 11 gantry cranes, maximum lift in the shed 252 tonnes
- 2 thermal cutting machines (3-bevel plasma and autogenous assemblies),
- Plate bending (rolling-up) machine up to 4,000mm width / 150mm plate thickness, cold
- 4 submerged-arc welding machine up to 8.5 x 10m with 2,500A for tandem and plating operation, orbital circumferential welding machine
- Manipulation/welding automation. Rolling devices and rotary/tilt tables up to 100t component weight
- Circumferential and longitudinal weld seam milling machine for plate thicknesses up to240mm, face lathe 3,100mm diameter, centre lathes up to 5,000mm length
Apparatus and tank construction
Creating capacities. Kremsmueller offers the total portfolio of tank construction services for a large number of sectors – with single or double-jacket versions, built by the bottom-up or top-down method. As a roofed construction, all the options for protection of the medium are available.
Commissioning, service and repairs. A multiplicity of services are offered for existing plants. From emission protection solutions and ready renovation concepts to comprehensive maintenance. Here, you can place your complete trust in the technical competence in the engineering from Kremsmueller, starting with the development, strength calculations, and construction, and going to the thermo-technical design.
- Single-wall tanks
- Double-jacket tanks
- Tank roofs, conical or cantilever dome design of aluminium
- Floating roof manufacture
- Tank bottoms
- Tank sealing
- Heat accumulators
- Gas tanks
- Refurbishing and retrofitting of tanks and tank depots
- FSU floating suction systems
- Floating roof sealing, external or internal
- Drainage systems
- Emission control plants
- Maintenance and service
Apparatus and tank construction
Heat and electricity are generated according to the principle of combined heat and power. A heat accumulator allows the de-coupling over time of the heat and electricity production, in that the “excessive” production of heat energy is temporarily stored practically without any loss over several days. The heat accumulator thus optimises the operation of a power plant and allows flexibility in the changing conditions of the power market.
- Pressure-less heat accumulators: up to V=50,000m³
- Pressurised heat storage units: factory-manufactured up to ø4.4m
- Pressurised heat storage units: manufactured at the site from ø4.45m
- Conceptualisation of the required tank size
- Design, from a process engineering perspective, of the tank parameters like the nominal width of the inlet and outlet, the size of the water distribution diffusers, the splash water system for roof space inertisation, the safety devices for securing against overpressure and underpressure or against overfilling.
- Detail engineering for heat accumulators, operating steel construction and integration piping
- Detail engineering for the insulation, including the heat loss calculation in accordance with the Cogeneration Act (max. permissible heat loss = 15 W/m²)
- I&C detail engineering like planning, manufacturing and supply of the switch cabinets or the PLC programming
- Prefabrication
- Delivery
- Installation of heat accumulators and operating steel construction
- Installation and wiring of the I&C components
- Insulation
- Commissioning
Apparatus and tank construction

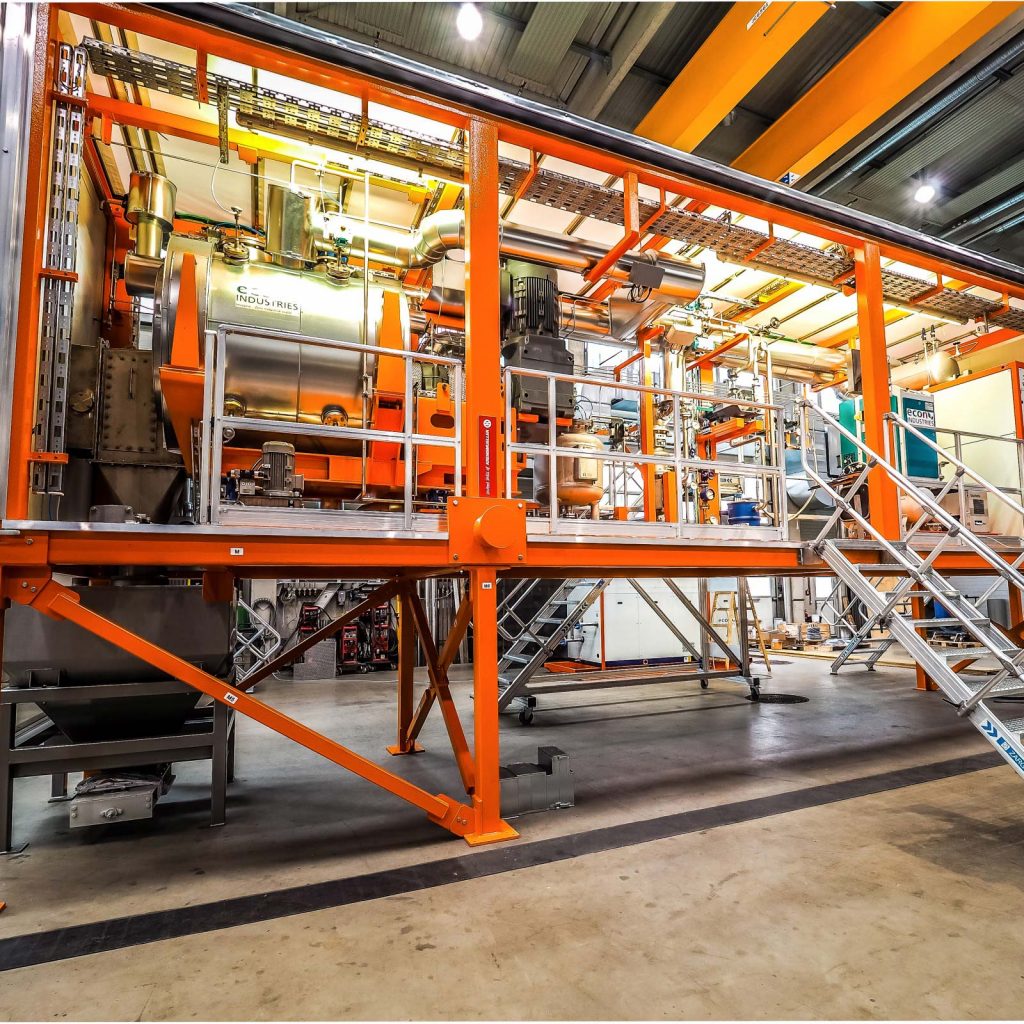

Process engineering processes, such as thin film evaporation, are complex procedures that require an exact design – from feasibility studies, process engineering considerations, engineering outputs, laboratory and pilot tests and their implementation and installation, up to commissioning and maintenance. For the process industry, too, Kremsmueller supplies concepts that cover the entire life cycle of a plant.
You can find more information about our thin-film evaporator technologies here.
- Evaporation technology
- Vapouriser
- Reactors
- Columns
- Heat exchanger
- Tank construction
- Thin film and short path evaporator 0.1m² – 100m²
- Thin film dryer 0.1 – 100m², vertical, horizontal
- Thin film and short path evaporator systems
- Vapourising systems (multi-stage, mechanical or thermal vapour compressors)
- Feasibility studies
- Detail Engineering (Inventor, AC plant 3D)
- Laboratory and pilot tests
- Production
- Installation
- Commissioning
Apparatus and tank construction

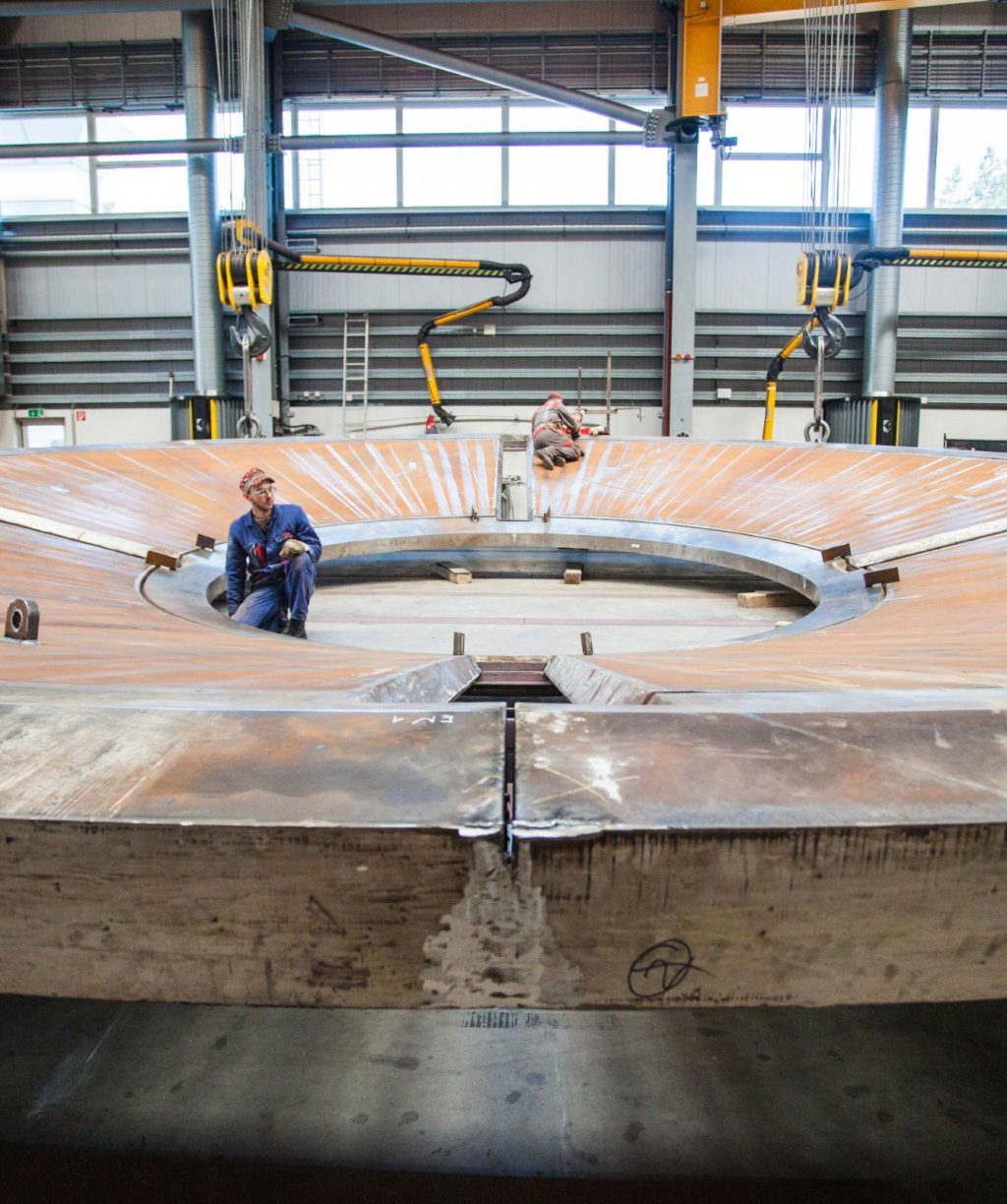

Renowned for high quality, extensive know-how and ultra-modern technical equipment in the area of welding, Kremsmueller is also excellently organised for manufacturing special welded parts.
Welded parts made of special materials do not present any problem whatever, and neither do complex geometries, high wall thicknesses or warpage-endangered parts. Special welding methods, technological heat treatments, special position manipulators, plating technology and additional machining are offered.
Whenever high acceptance standards, monitoring or special approvals are required, the experts from Kremsmueller are the correct choice.
- 11 gantry cranes, maximum lift in the shed 252 tonnes
- 2 thermal cutting machines (3-bevel plasma and autogenous assemblies),
- Plate bending (rolling-up) machine up to 4,000mm width / 150mm plate thickness, cold
- 4 submerged-arc welding machine up to 8.5 x 10m with 2,500A for tandem and plating operation, orbital circumferential welding machine
- Manipulation/welding automation. Rolling devices and rotary/tilt tables up to 100t component weight
- Circumferential and longitudinal weld seam milling machine for plate thicknesses up to240mm, face lathe 3,100mm diameter, centre lathes up to 5,000mm length

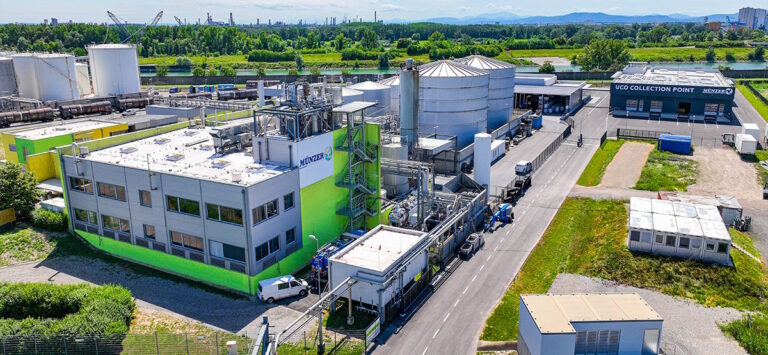

Kremsmüller supplies components for biodiesel production
